CAN PSU

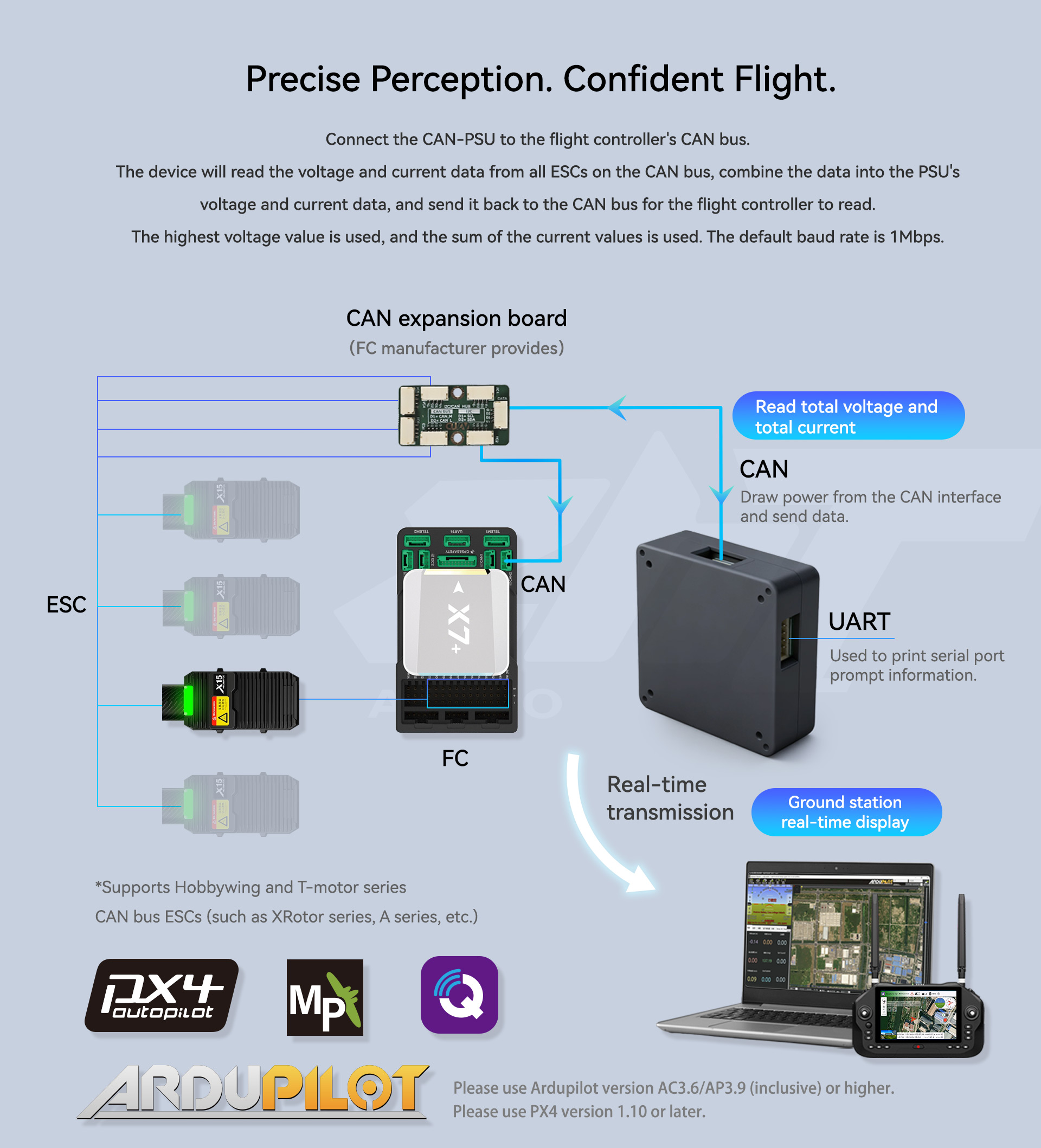

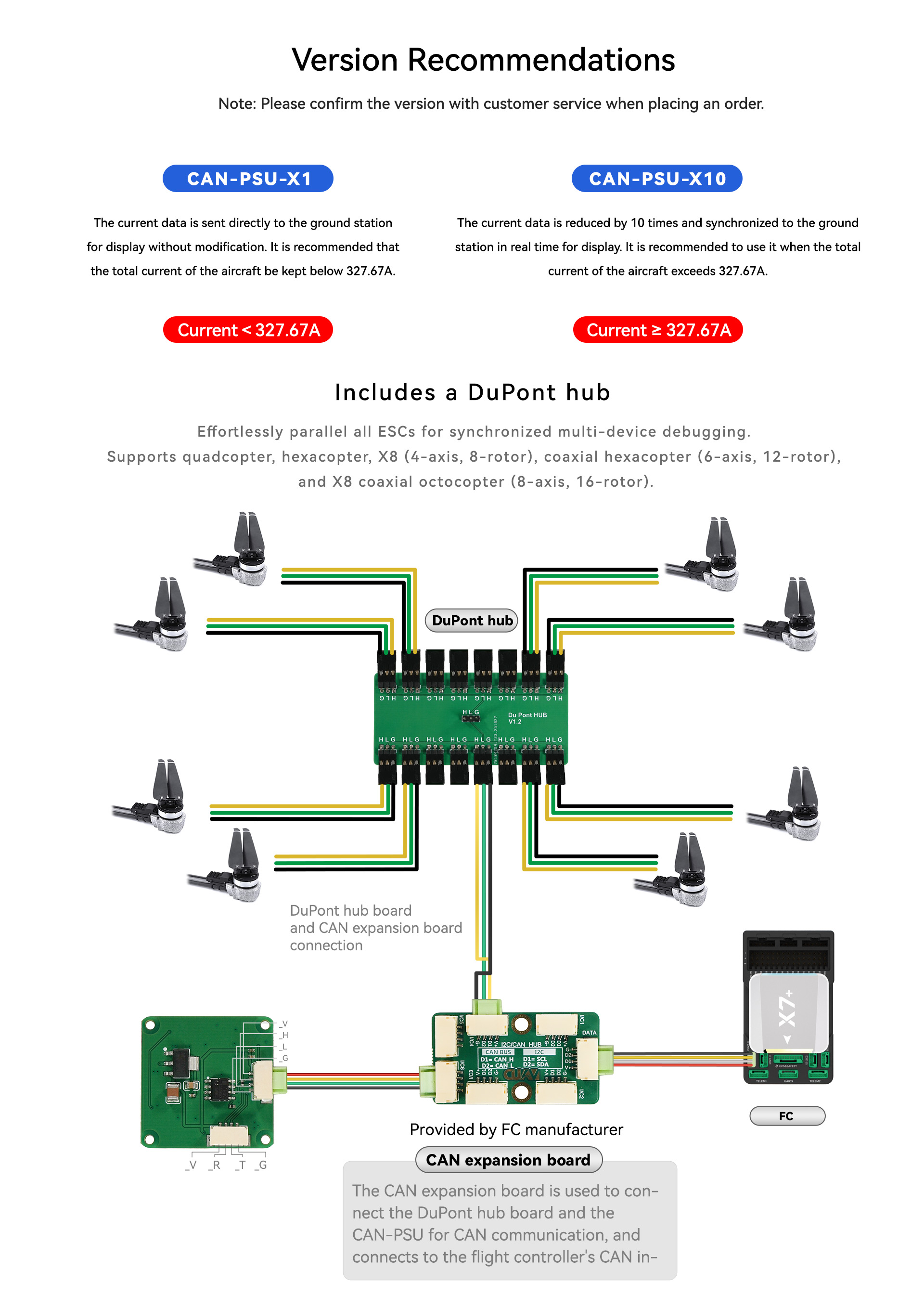

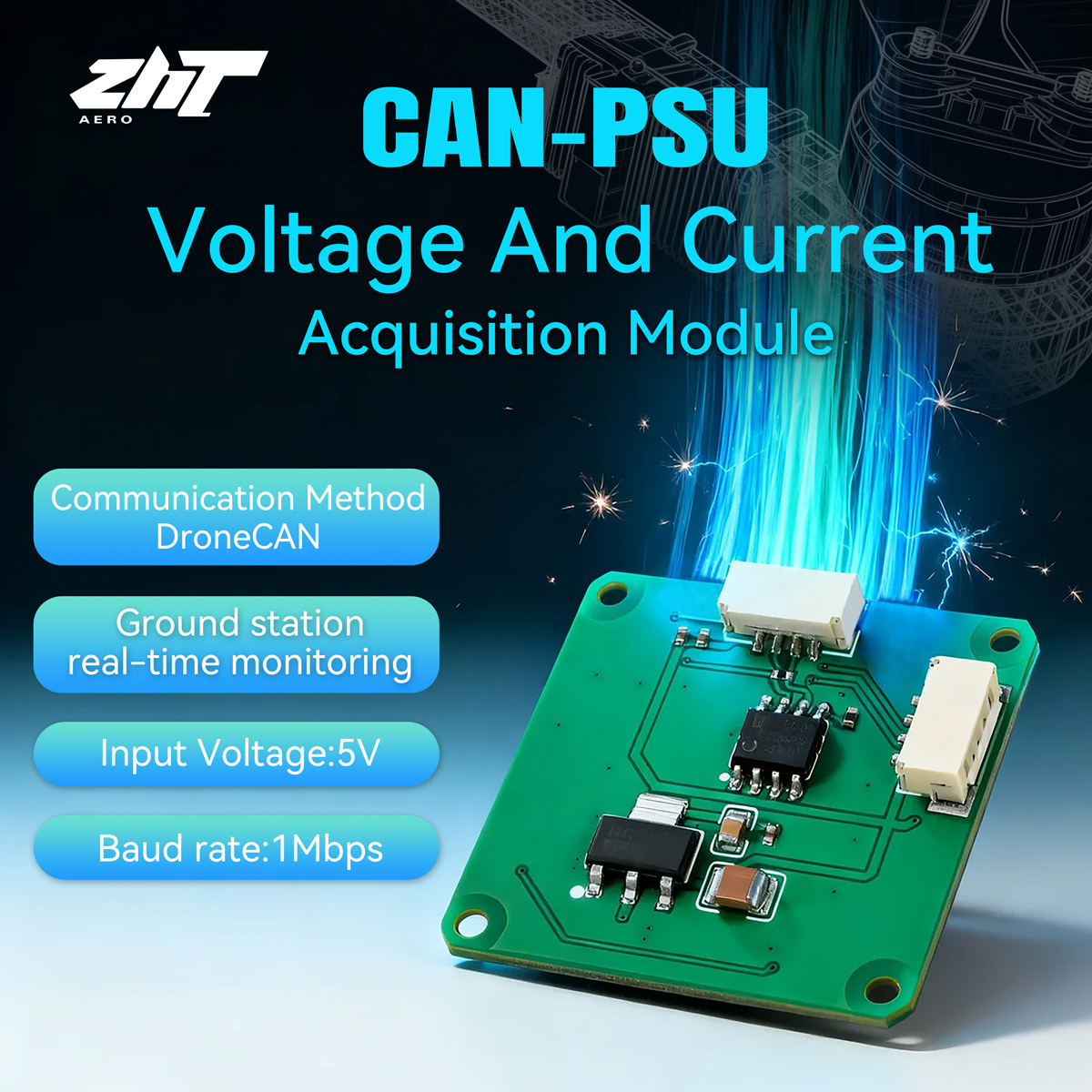

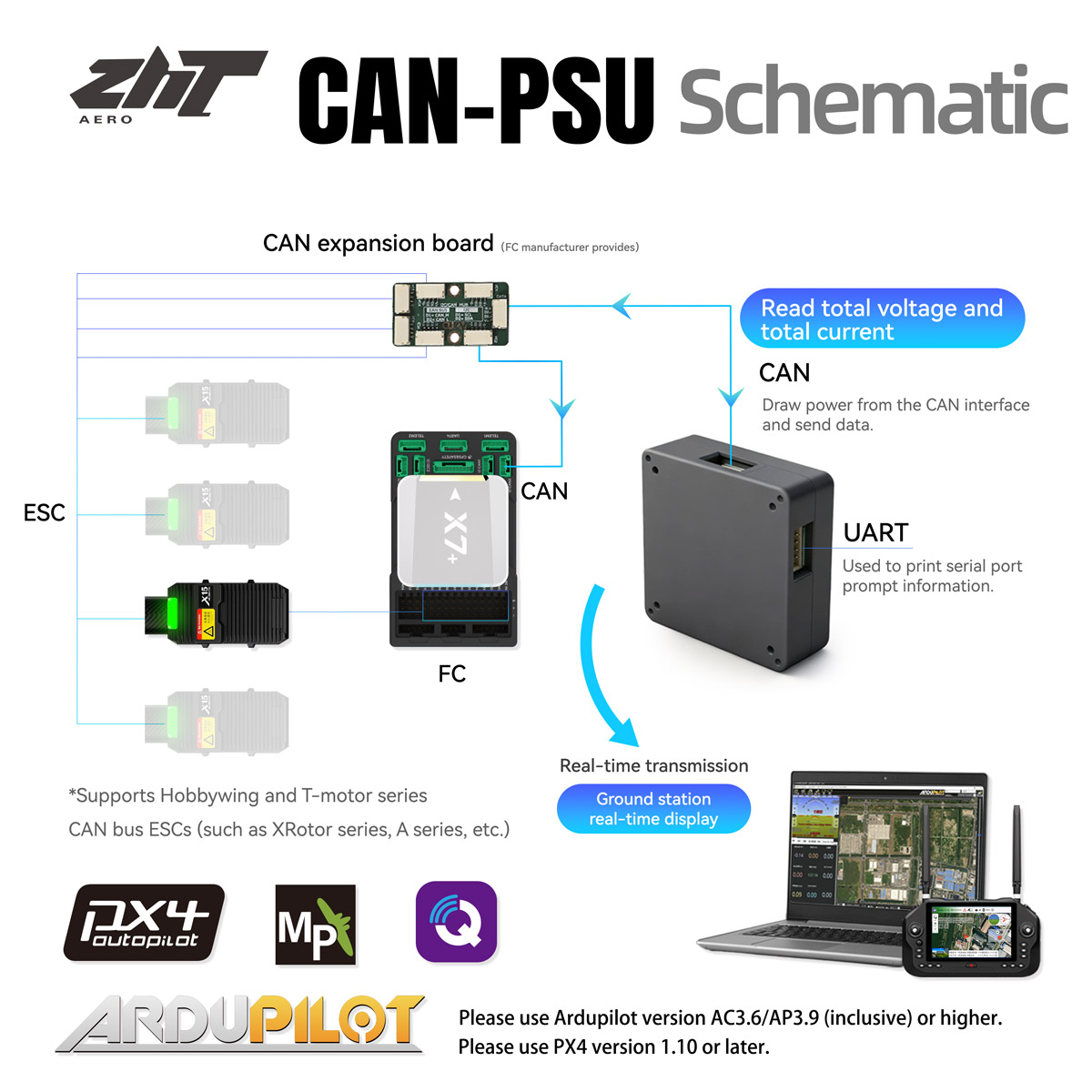

The CAN-PSU module is used to collect voltage and current data inside the drone. When connected to the flight controller's CAN bus, the device reads the voltage and current data of all ESCs on the CAN bus and synthesizes the data into PSU voltage and current data, which is then sent back to the CAN bus for the flight controller to read. The highest value is used for voltage data, and the sum is used for current data. The default baud rate is 1Mbps. Adopting CAN bus differential signal transmission mode, it has excellent anti-interference ability and ensures stable data transmission in complex electromagnetic environments. CAN-PSU has wide-area compatibility. The module itself does not involve physical access to high voltage or high current. The upper limit of data acquisition depends on the measurement limit of the ESC to which it is connected, which is safe and risk-free. This module is an ideal choice for building a high-reliability UAV power monitoring system. The CAN-PSU module is available in two versions: Version 1: CAN-PSU-X1 The current data is sent directly to the ground station for displaywithout modification. It is recommended that the total current of theaircraft be kept below 327.67A. Version 2: CAN-PSU-X10 The current data is reduced by 10 times and synchronized to the groundZHT Aerostation in real time for display. It is recommended to use it when thetotal current of the aircraft exceeds 327.67A. Please confirm the version you are using when placing your order.
