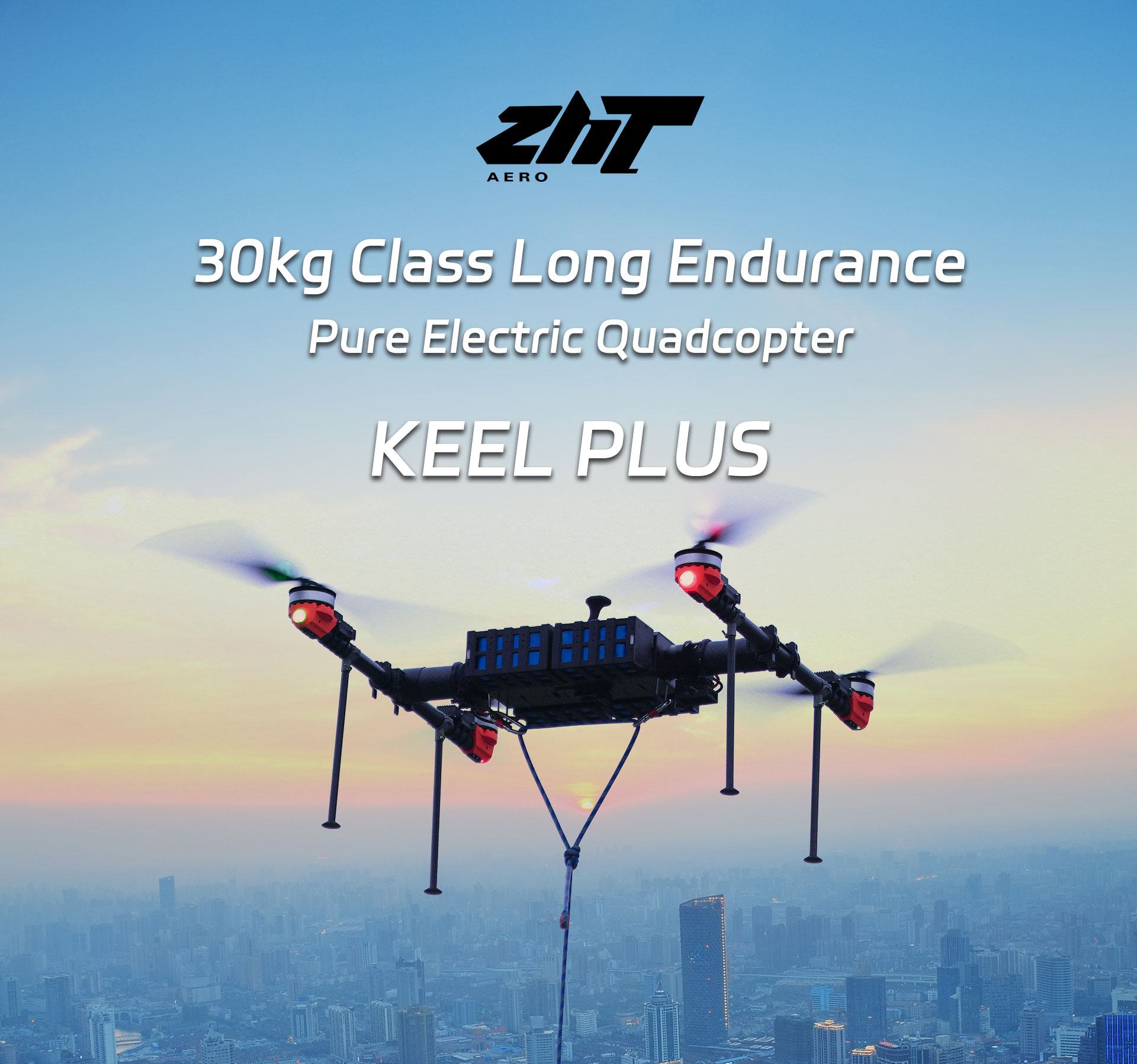

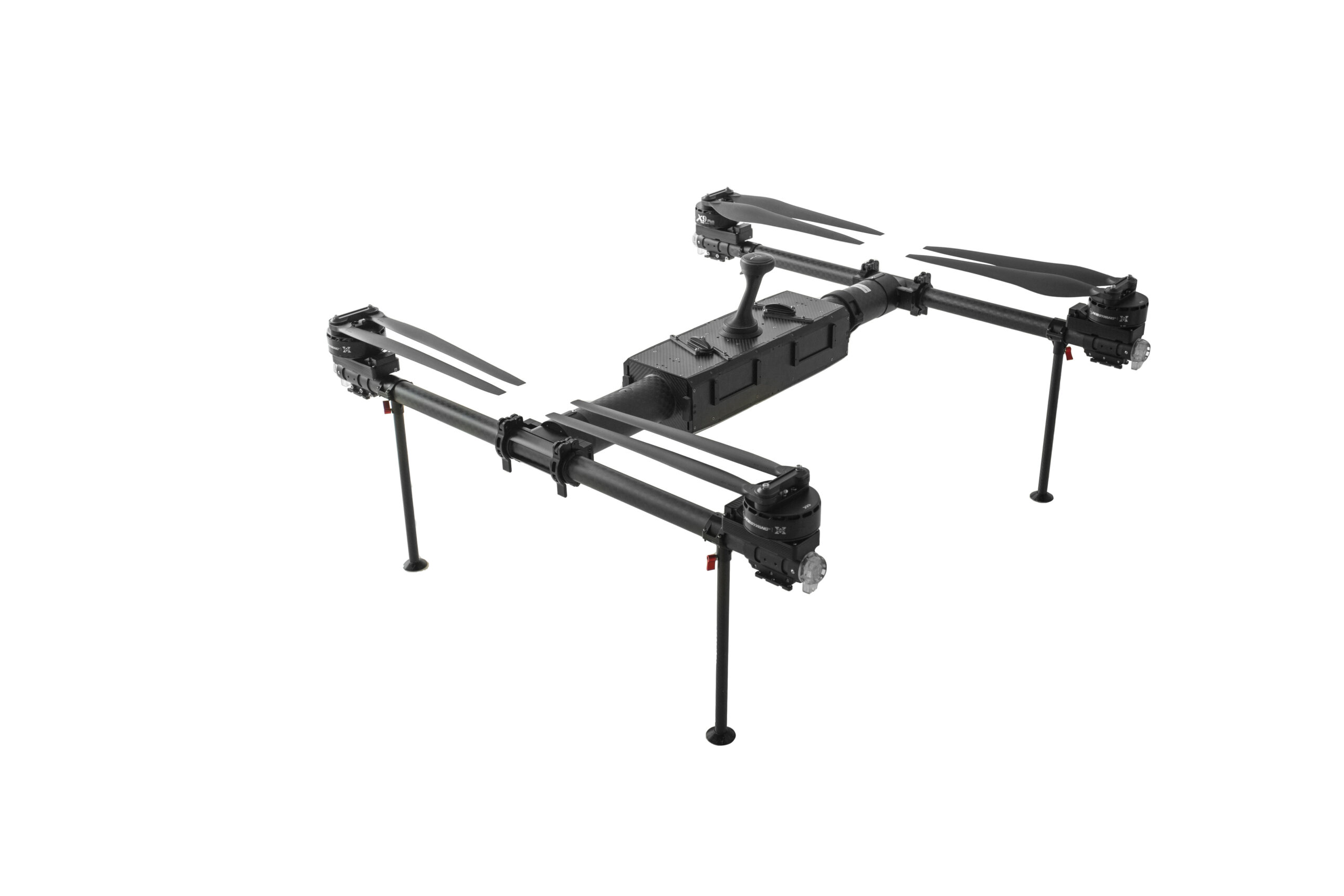

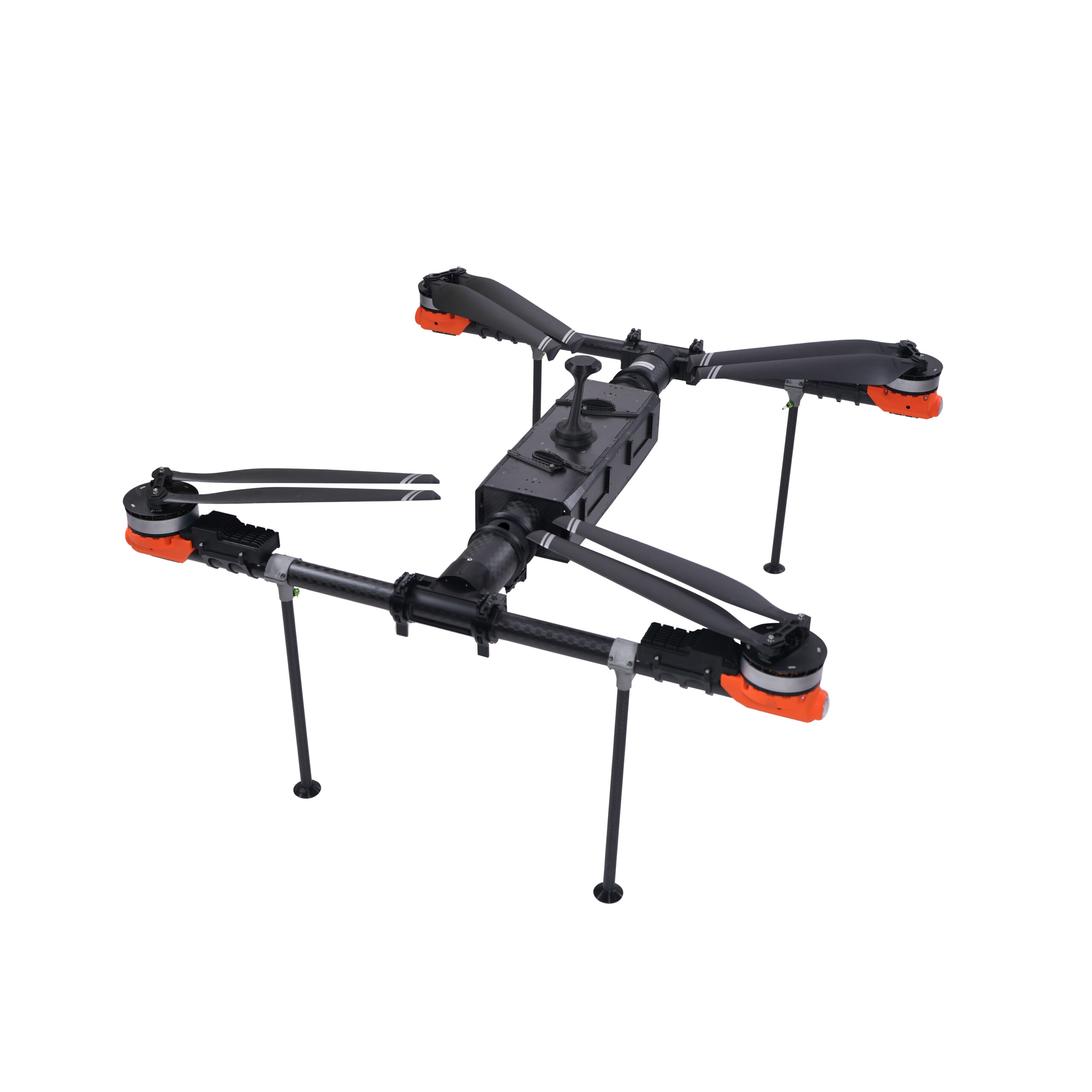

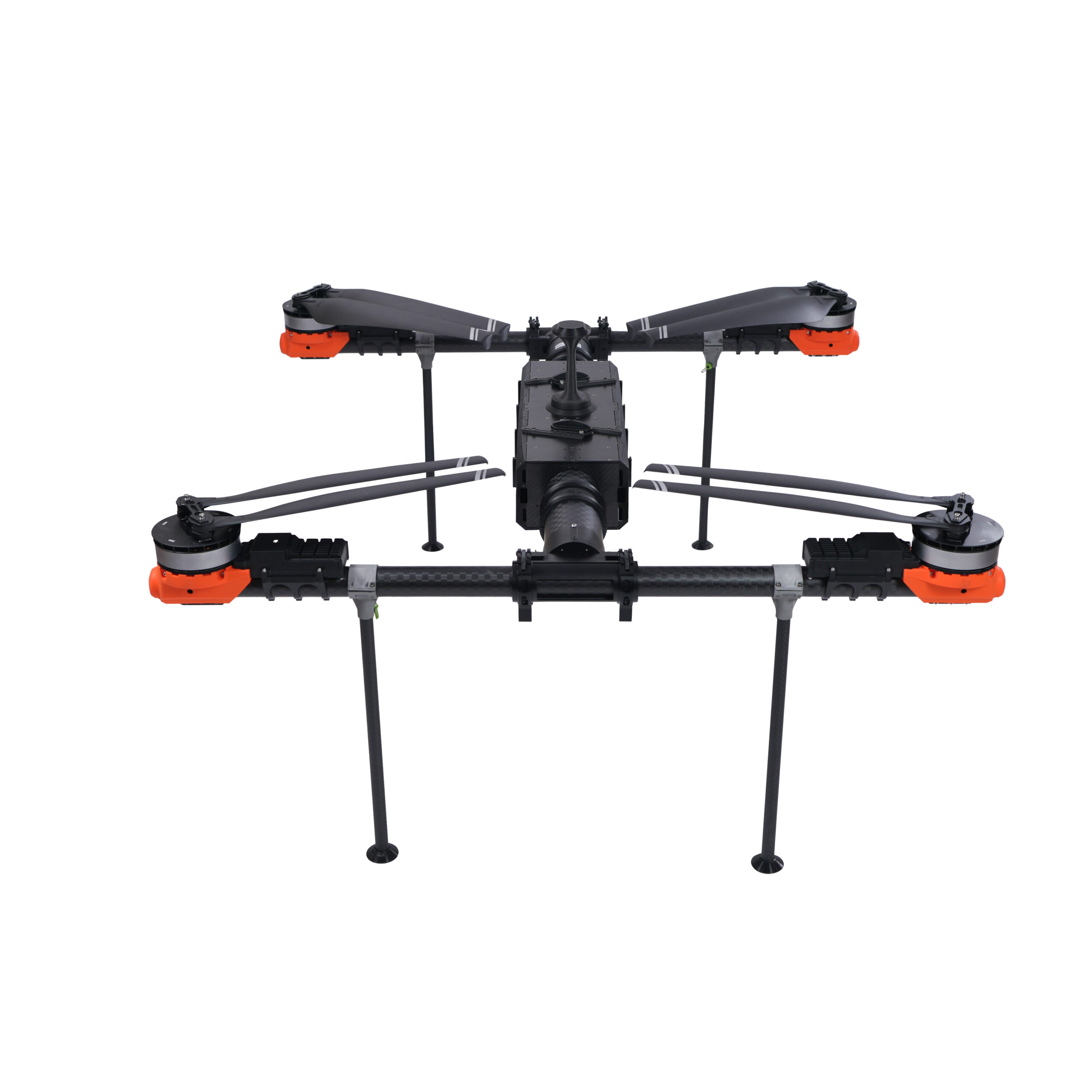

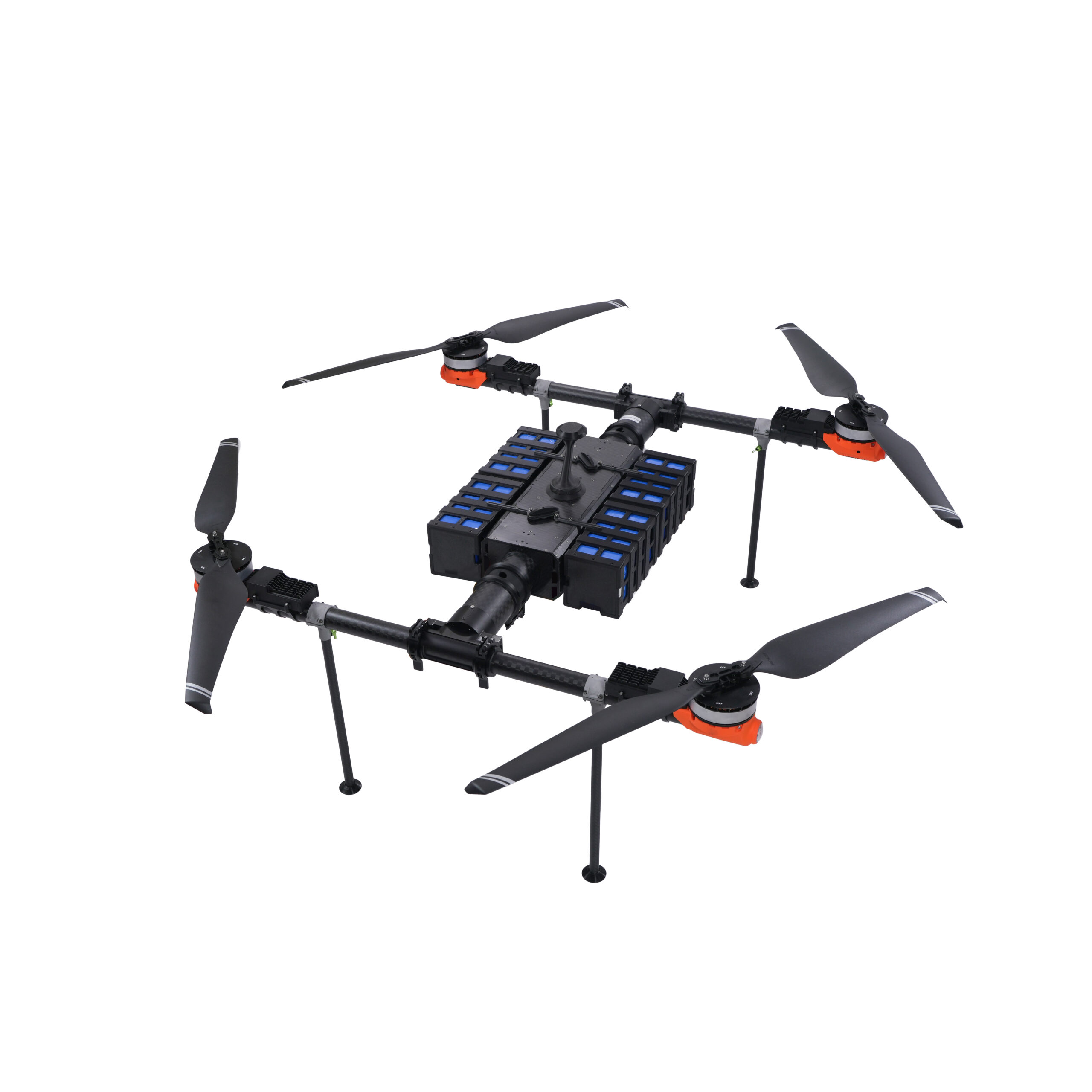

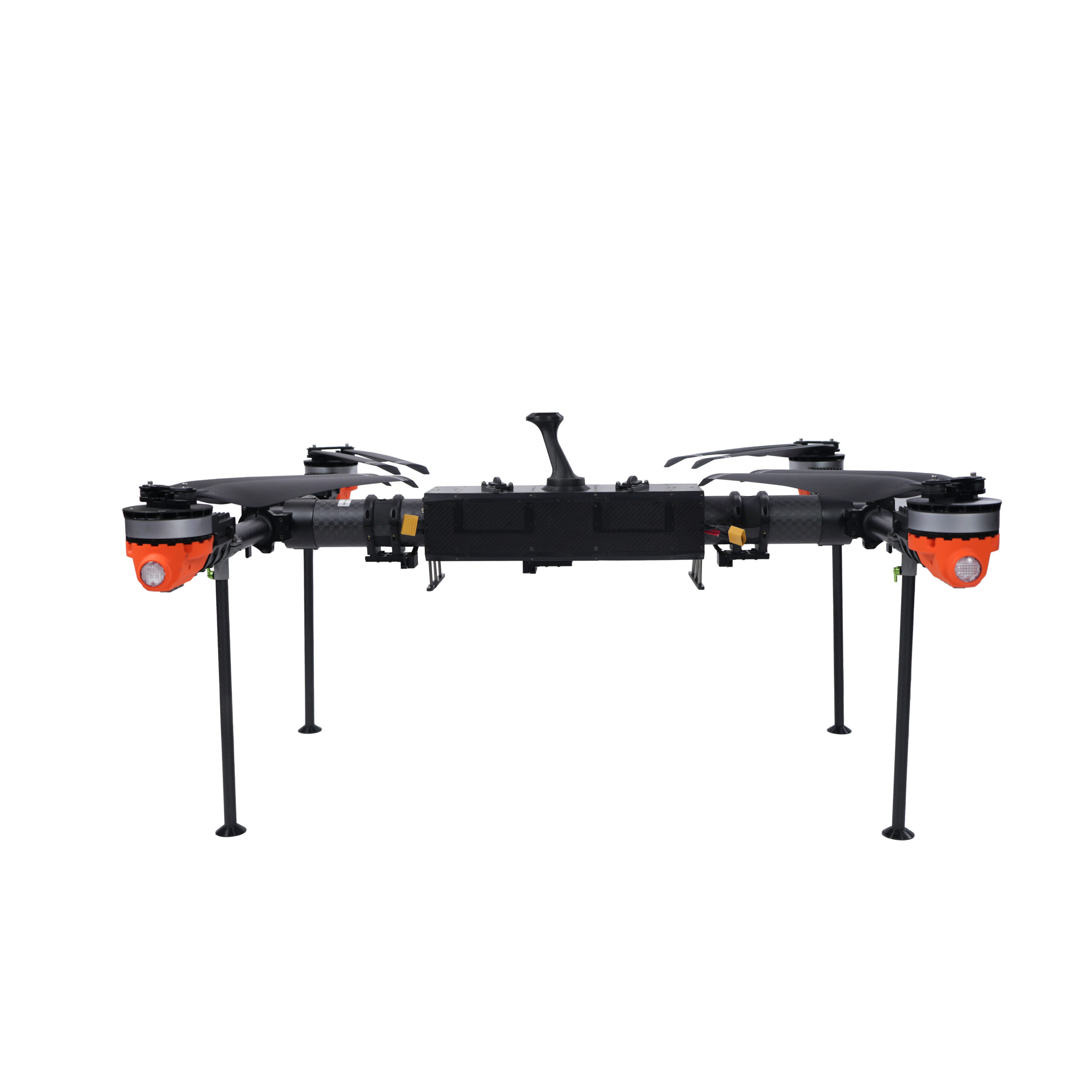

KEEL PLUS 30kg Class Long EndurancePure Electric Quadcopter
Max. Loading Capacity 30KG

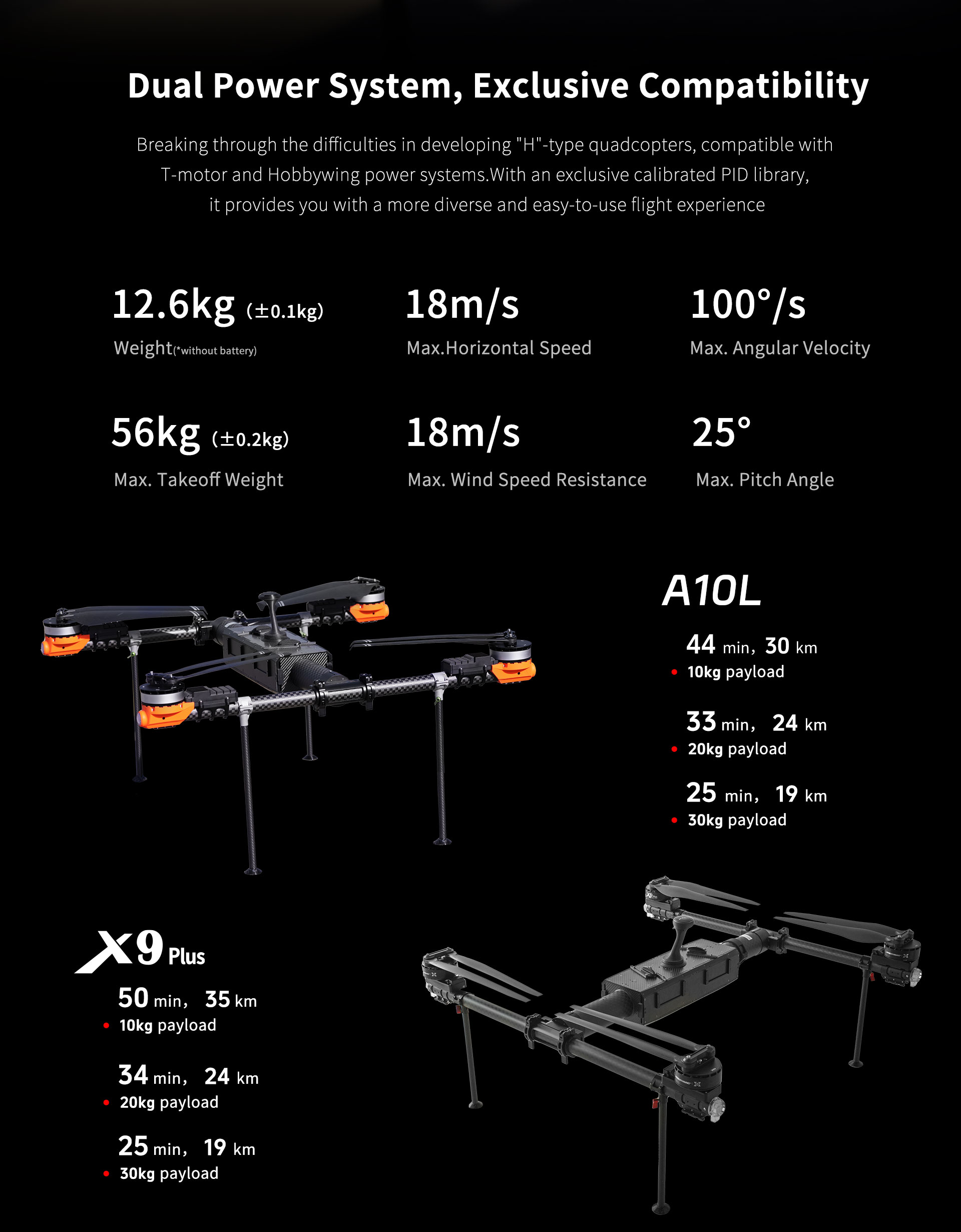

Dual Power System,Exclusive Compatibility

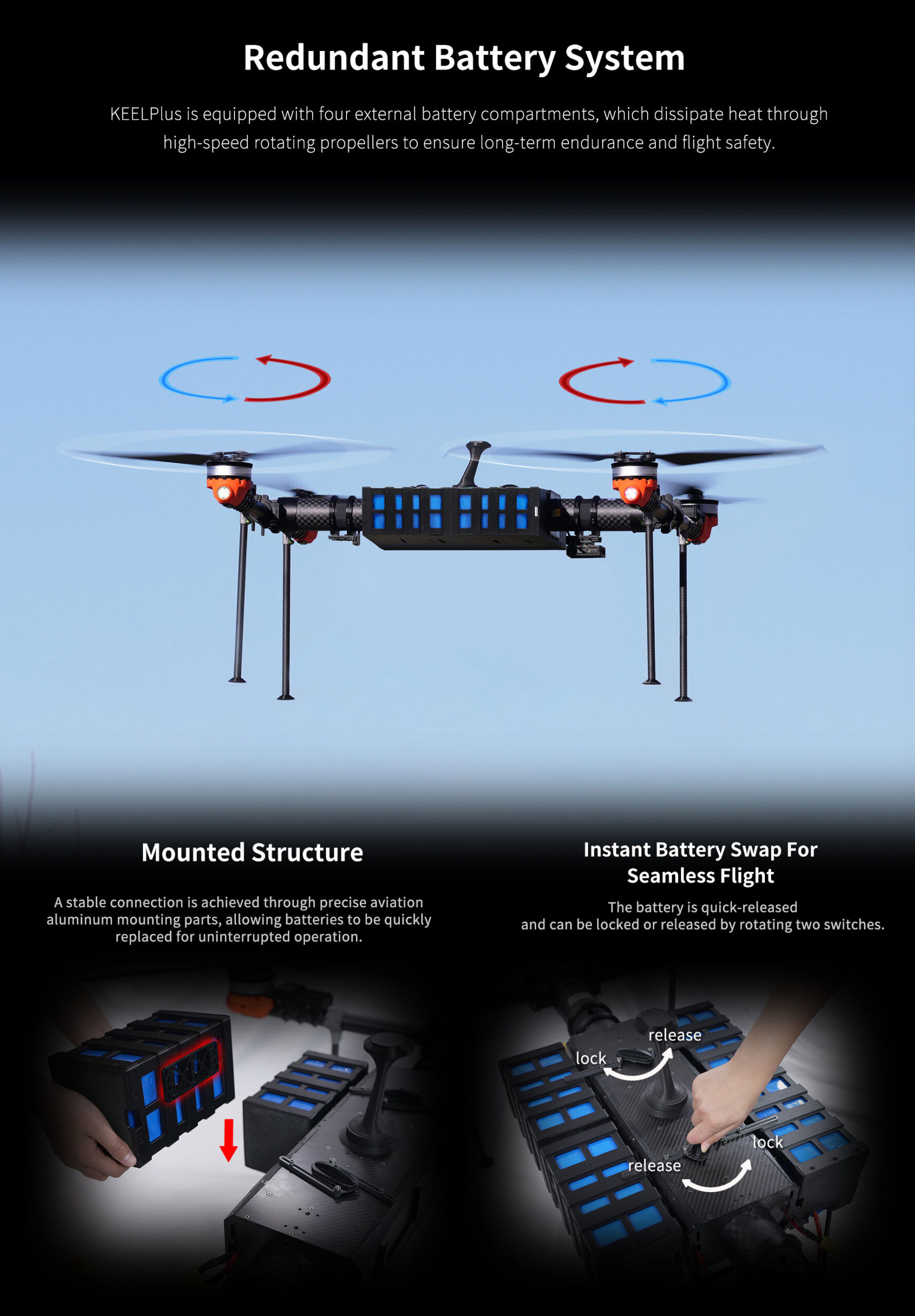

Redundant Battery System

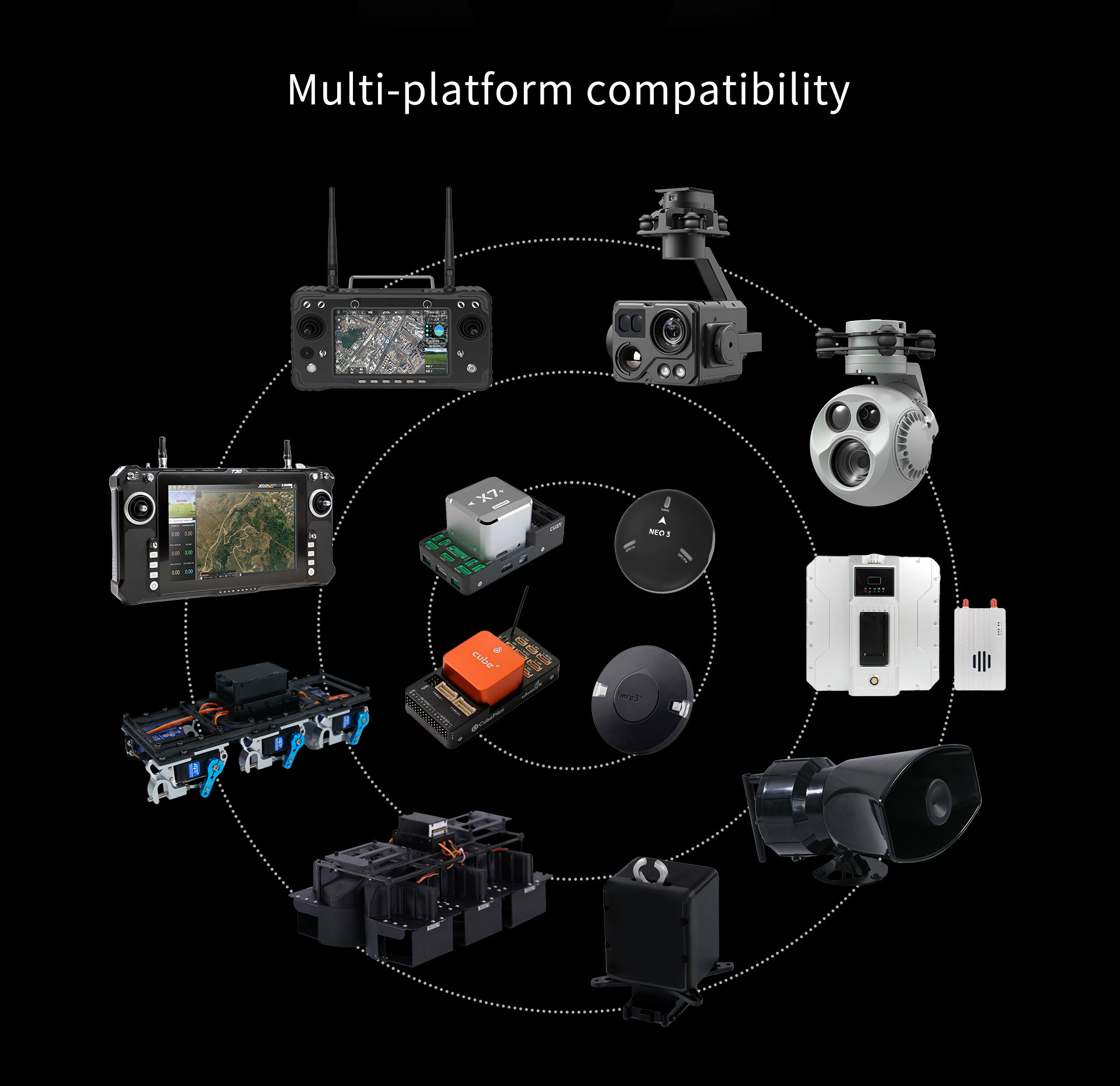

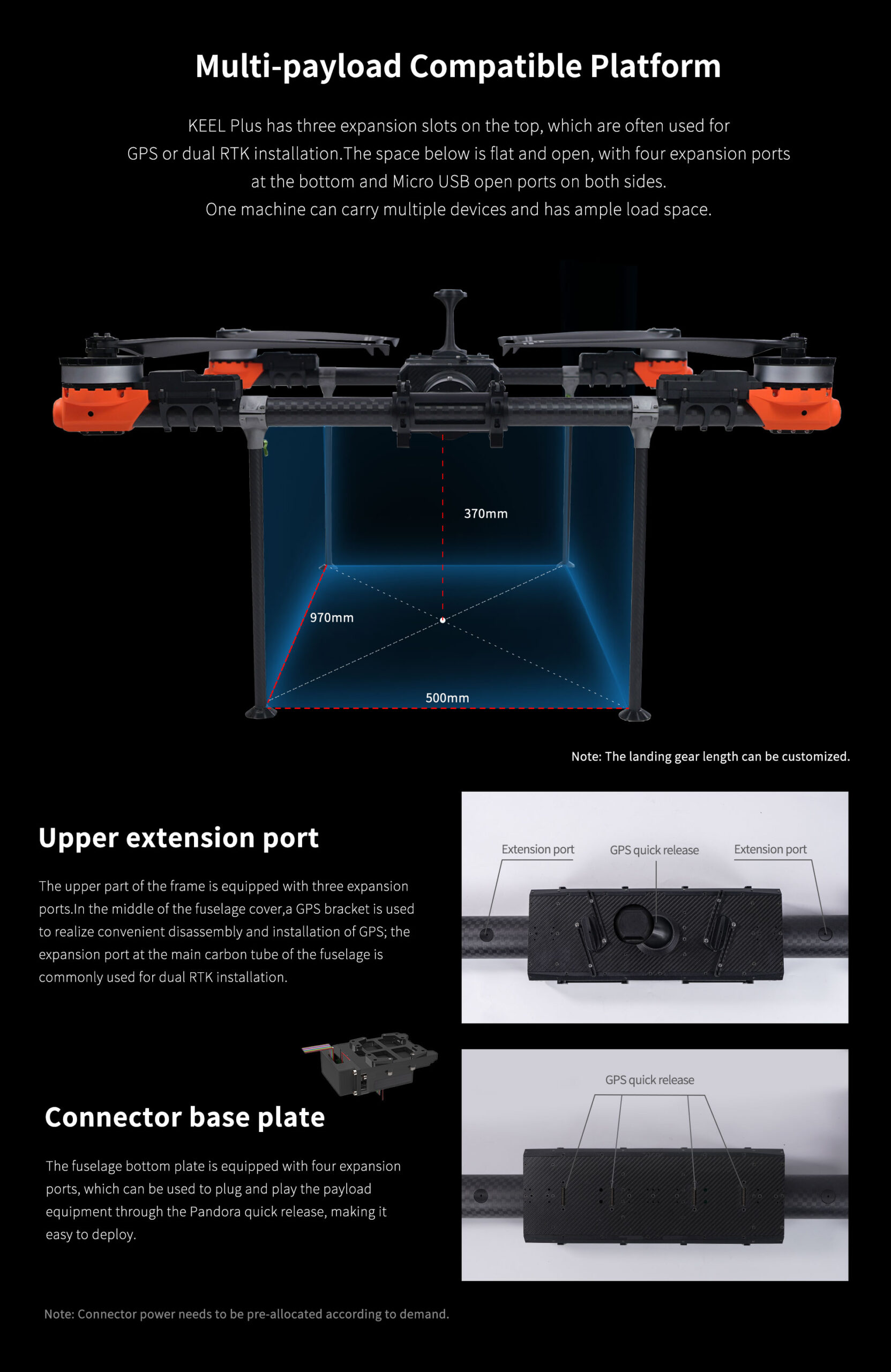

Multi-payload compatible Platform

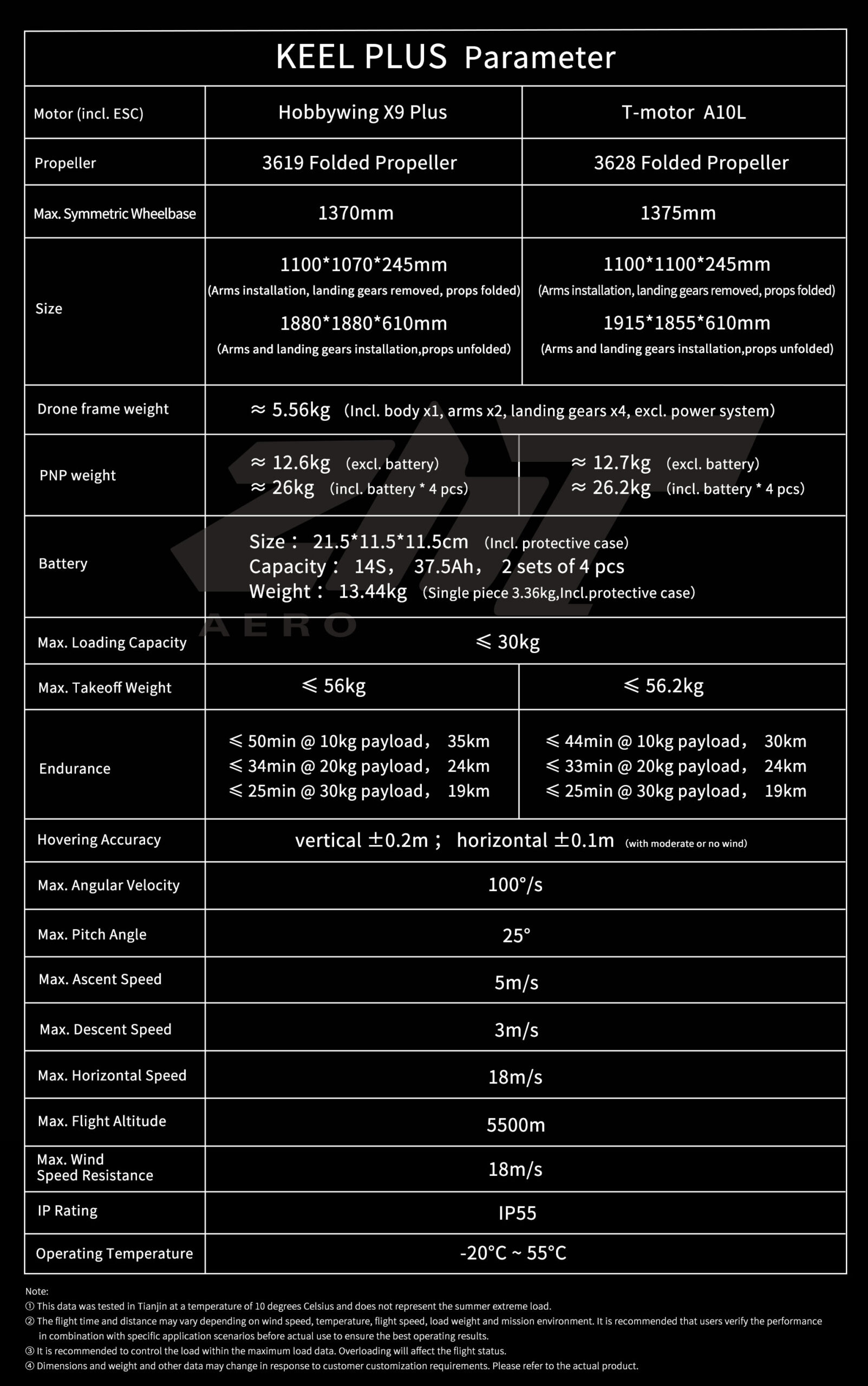

| KEEL PLUS PARAMETER | ||||
| Motor (incl. ESC) | Hobbywing X9 Plus | T-motor A10L | ||
| Propeller | 3619 Folded Propeller | 3628 Folded Propeller | ||
| Max. Symmetric Wheelbase | 1370mm | 1375mm | ||

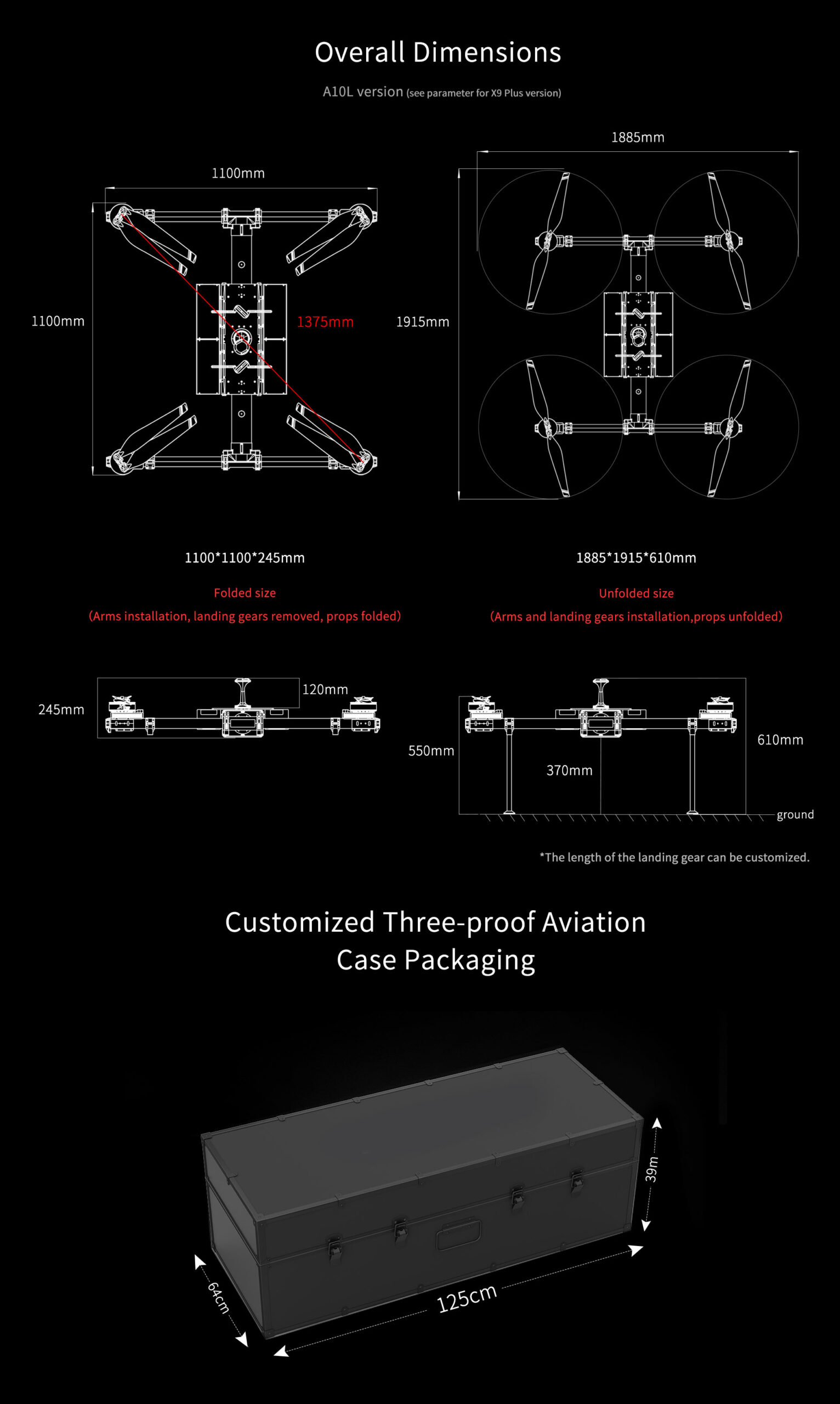

| Size | 1100*1070*245mm (Arms installation, landing gears removed, props folded) 1880*1880*610mm （Arms and landing gears installation,props unfolded） | 1100mmx1100mmx245mm (Arms installation, landing gears removed, props folded) 1915x1855mmx610mm (Arms and landing gears installation,props unfolded) | ||
| Drone Frame weight | ≈ 5.56kg（Incl. body x1, arms x2, landing gears x4，excl. power system） | |||
| PNP weight | ≈ 12.6kg（excl. battery） ≈ 26kg（incl. battery * 4 pcs） | ≈ 12.7kg（excl. battery） ≈ 26.2kg（incl. battery * 4 pcs） | ||
| Battery | Size：21.5*11.5*11.5cm（Incl. protective case） Capacity：14S，37.5Ah，2 sets of 4 pcs Weight：13.44kg（Single piece 3.36kg，Incl.protective case） | |||
| Max. Loading Capacity | ≤30kg | |||
| Max. Takeoff Weight | ≤56kg | ≤56.2kg | ||
| Endurance | ≤ 50min @ 10kg payload，35km ≤ 34min @ 20kg payload，24km ≤ 25min @ 30kg payload，19km | ≤ 44min @ 10kg payload，30km ≤ 33min @ 20kg payload，24km ≤ 25min @ 30kg payload，19km | ||
| Hovering Accuracy | vertical ±0.2m；horizontal ±0.1m（with moderate or no wind） | |||
| Max. Angular Velocity | 100°/s | |||
| Max. Pitch Angle | 25° | |||
| Max. Ascent Speed | 5m/s | |||
| Max. Descent Speed | 3m/s | |||
| Max. Horizontal Speed | 18m/s | |||
| Max. Flight Altitude | 5500m | |||
| Max. Wind Speed Resistance | 18m/s | |||
| IP Rating | IP55 | |||
| Operating Temperature | ﹣20℃ ~ +55℃ | |||
| Note: *This data was tested in Tianjin at a temperature of 10 degrees Celsius and does not represent the summer extreme load. *The flight time and distance may vary depending on wind speed, temperature, flight speed, load weight and mission environment. It is recommended that users verify the performance in combination with specific application scenarios before actual use to ensure the best operating results. *It is recommended to control the load within the maximum load data. Overloading will affect the flight status. *Dimensions and weight and other data may change in response to customer customization requirements. Please refer to the actual product. | ||||
